Terran Big Spotlight
Image 1 Image 1 Image 1 Image 1 Image 1
Product Details
  • Body
    Aluminum with electrostatic paint
  • Certificates
    TSE, CE, ISO, Compatible with ENEC standards
  • Led
    Led Modules with 50.000 Hours Lifetim
  • Areas
    Shopping Malls, Supermarkets, Offices, Meeting rooms, Stores, Hospitals, Schools, Corridors
  • Options
    Dimmable, DALI, Emergency Kit.

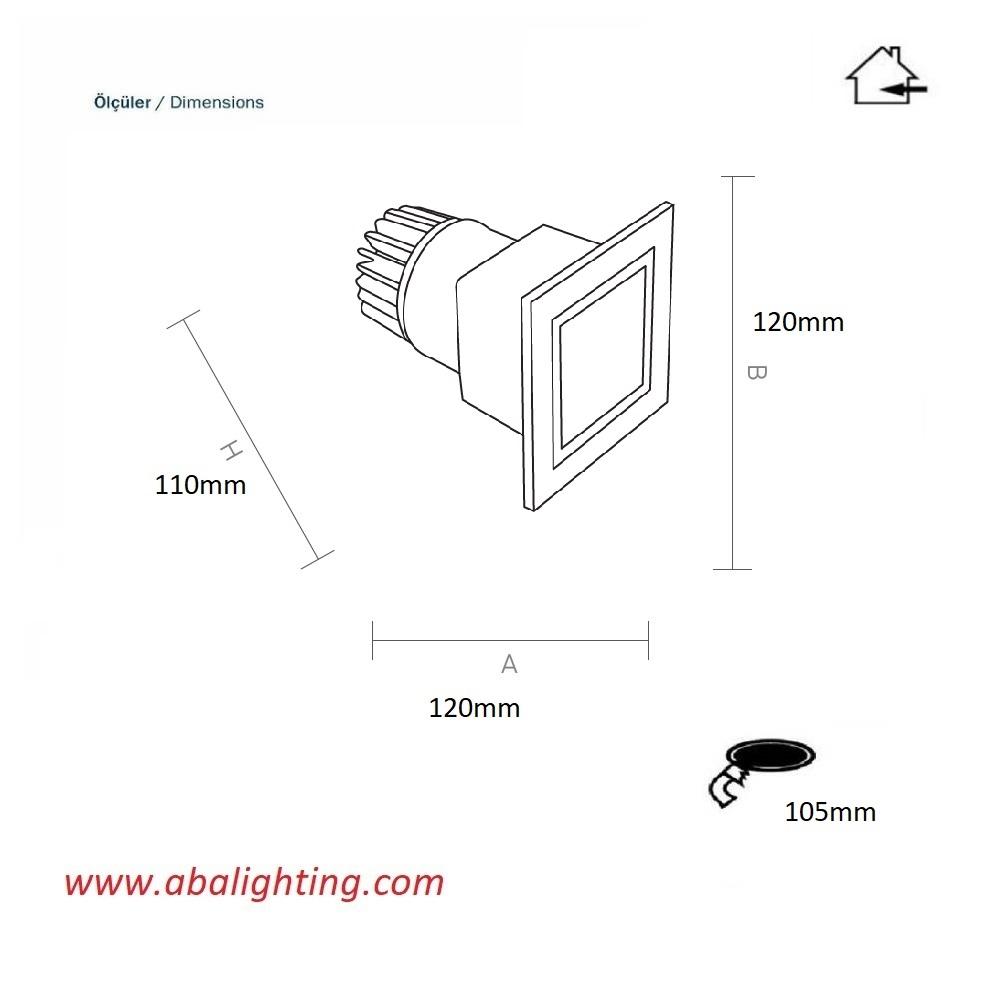

Code: AHC.120x120
Size: 120*120mm
Cut Off: 105mm
Height: 110mm
Ip: 20-44
Energy: A+++
Workin V: 220-240V
Watt: 8-10
Lumen: 980-1200
Weight: 360gr
Pcs Box: 36
Box Size: 45*42*34cm
Cri: 80-90
Hz: 50/60
Body Color:
Ral 9016
Ral 9005
Ral 9010
Ral 7016
Led Color:
2700K
3000K
4000K
6500K

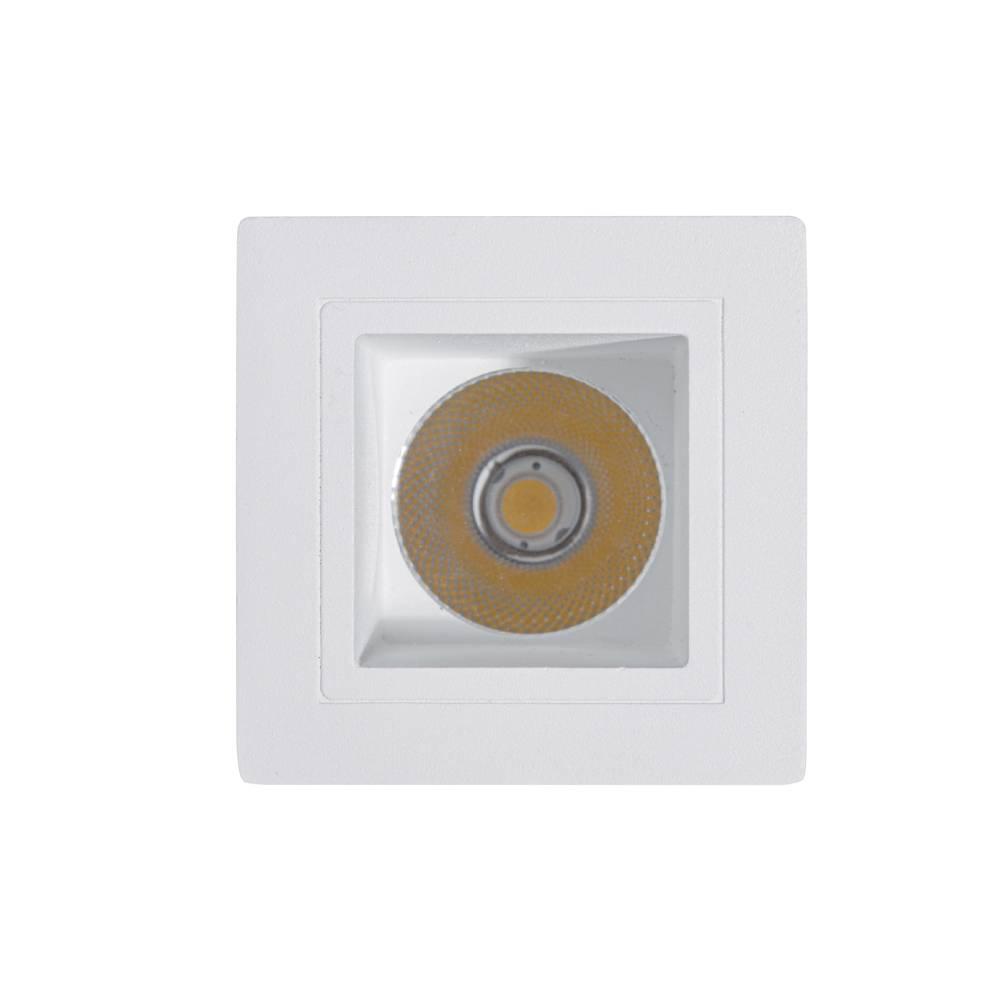

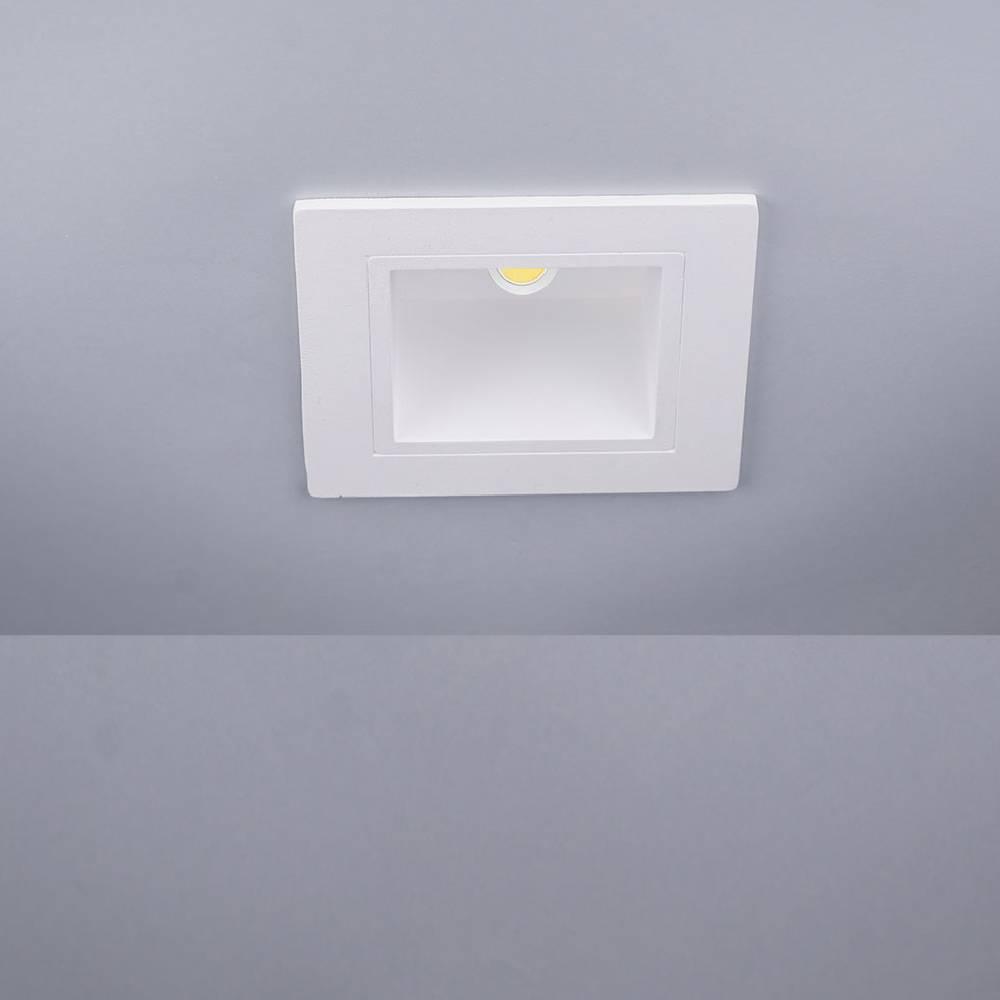

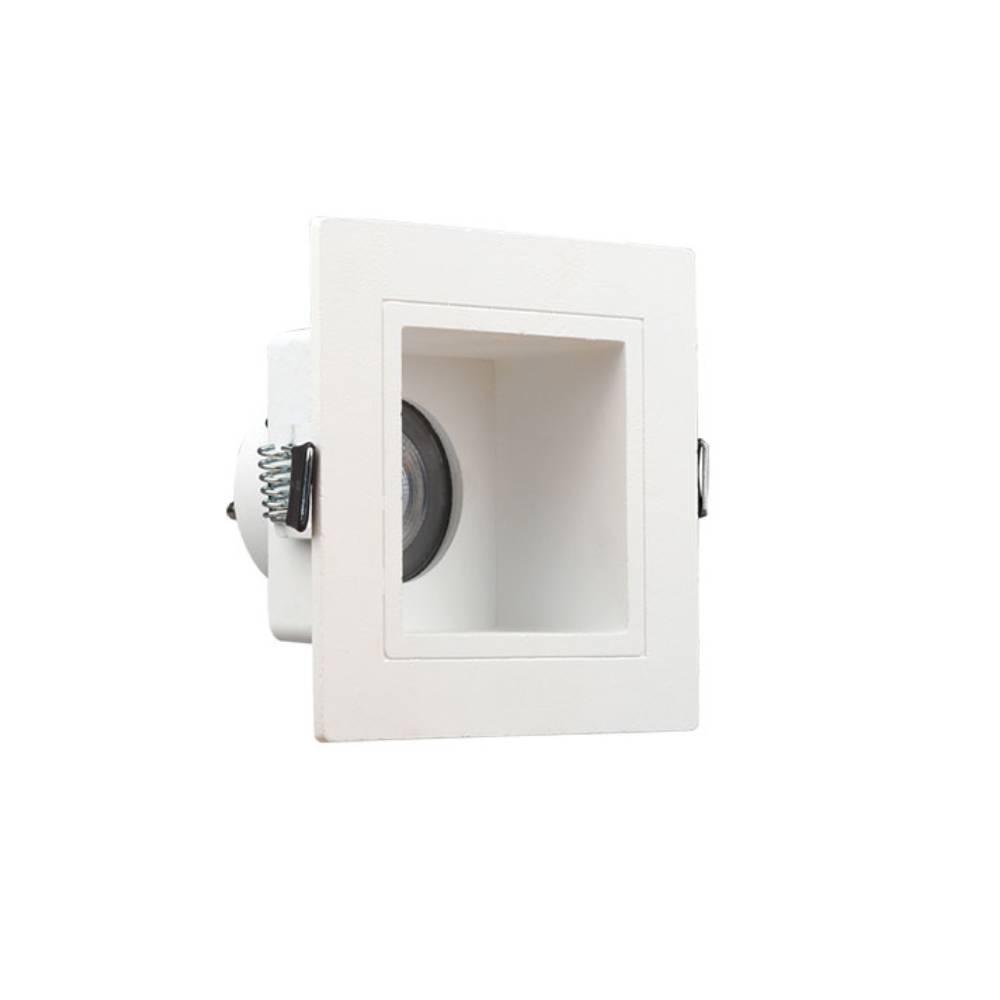

TERRAN has an aluminium injection cage which is custom designed for square cob led. Its diameters are 90*90mm and 120*120mm. Its frame is coated with electrostatic powder. It can be painted in any colour within Ral catalogue. Since diameter of ceiling hole shape is circular it provides easy installation for electricians. High lumen power in low watts ensures spacious and elegant ambiance at everywhere. TERRAN is an exquisite downlight for architects who look for specific decoration and stylish look. It offers a unique lighting for indoors such as cafe, restaurant and lobby
Datasheet
LDT
